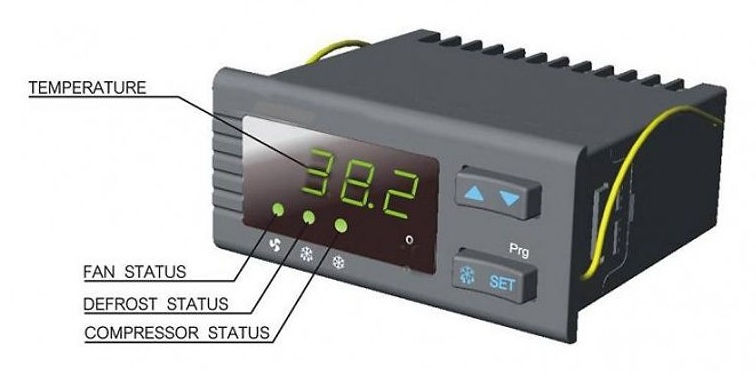

FT101 product photo
Temperature Controls

FT101

FT101 Freezer Thermostat with fan, defrost & compressor control.

This page describes FT101 as a freezer thermostat with fan, defrost, and compressor control. The linked manual covers FT-101 and FT-102. It says FT-101 has one temperature sensor, while FT-102 has temperature and defrost sensors. The rating table lists the FT-101 compressor relay as 8(3), which the note defines as 8 A resistive and 3 A inductive, and a light relay at the same 8(3) rating. The fan and defrost relay columns in that table are blank for FT-101. The manual says the size follows a DIN standard.

For FT-101 defrost, the manual says the process can be started with a button or when the defrost cycle is reached, the compressor stops during defrost, and the compressor turns on after the process. Defrost cycle can be set from 0 to 15 hours, with 0 meaning not active, and defrost duration from 5 to 60 minutes. Compressor control turns the compressor on when the temperature inside the freezer is at or above the set temperature plus a hysteresis. Hysteresis can be chosen from 1 to 9 C.

See this control with the boards in the control system for HVAC guide.
