Control Boards

This page lists the control boards and related kits. R200A/S3 is described as an R200A control board for a hot water or electric heat air handler. R201 is an AHU control board, two speed. R85A-001 is described as a UL approved 3-speed fan board, with 24 V input, 120-277 V, and 11 A fan control. R100A is an air-conditioning control board with high-pressure and low-pressure switch inputs. RAB-A24.11BE3 is a magnetic starter, 220 V. W100 is listed as a chiller controller.

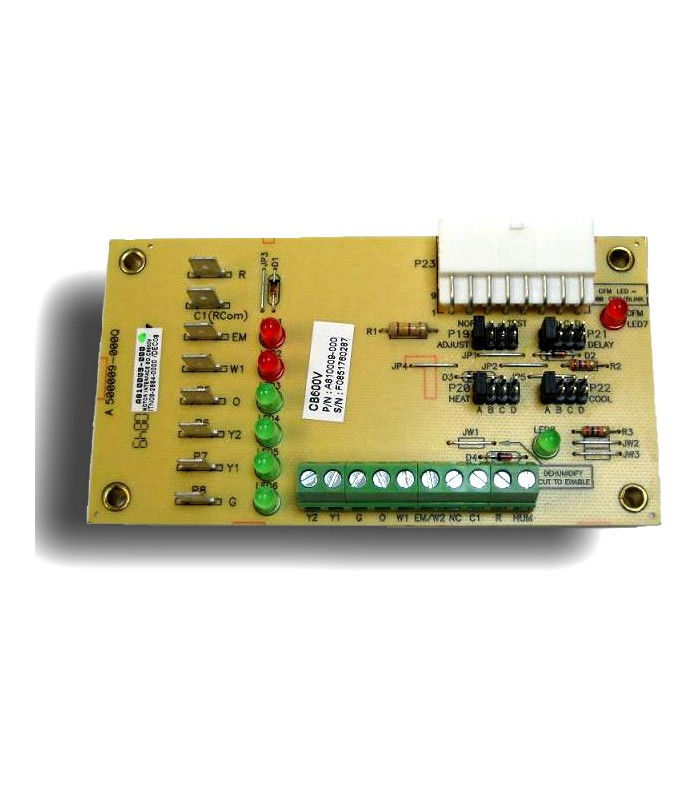

CB600V is a thermostat interface board for an ECM motor. EW40030 and EW40040 are wire kits for an ECM motor, with a 30 inch line-volt cable and a 40 inch line-volt cable. R650 is identified on its page as an ECM motor flyer. CBX02003 is a fan blower post-purge time delay of 65 seconds. CBX99100 is a fan delay board. R60A is a fan delay board with a 30 second on delay, a 30 second off delay, and a 2.5 by 3 inch size. R60B-45/S2 is a fan delay board with a 1 second on delay, a 45 second off delay, and a 2.5 by 2.5 inch size.

R60B-45/S2-R60BLEADS is that R60B board plus a wire harness, with the same 1 second and 45 second delays and the same 2.5 by 2.5 inch size. R60BLEADS is the wire harness by itself. R502 is a heater timing board. R401 is listed as water source heat pump boards. The cards keep those model numbers and the labels shown on this page, and each card links to the matching product page. Several of those pages also link a specification or manual. No price is printed on the product pages. Use Request a Quote on a product page to ask Vtronix about a board.

See control system for HVAC for these boards together with the temperature controls.

See custom control solutions for the application, specification, design and test, and production steps, including boards that are factory installed.
