R200A Control Board for hot water/electric heat AHU.
Documentation

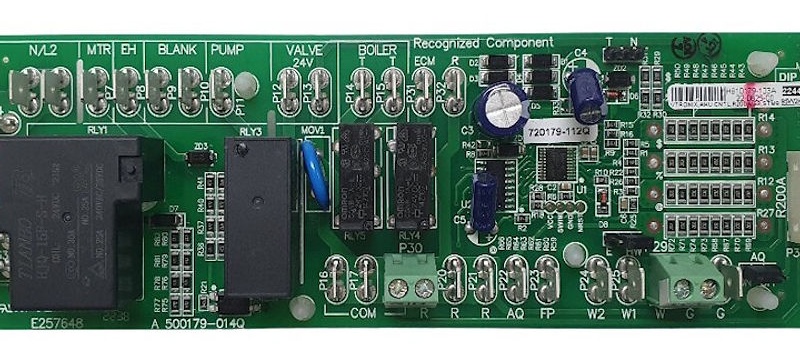

The R200A Series 3 specification describes a microprocessor AHU board for hot water or electric heat. A jumper selects the heat type. Electric heat controls a line-voltage fan or a low-voltage ECM motor. Hot water adds a pump, a 24 Vac isolation valve, and a dry contact for a water heater. Series 3 adds relay RLY4, an aquastat input, and a test connection. The sheet says the board must be factory installed inside the equipment.
Electric-heat timing is blower operation while the EH signal is energized, and a 45 second blower-off delay after G. Hot-water timing includes a pump that runs four times daily for 60 seconds, a 60 second preheat before the blower when the aquastat jumper is off, and a 30 second blower-off delay after heat. Cooling keeps the blower on for 45 seconds after G. Optional freeze protection energizes the pump below 40 degrees. Line voltage is listed at 120 to 240 Vac, 50/60 Hz. The sheet says the board is tested to UL 873. Size is 7.00 by 2.35 by 1.65 inches.
