R60BLEADS

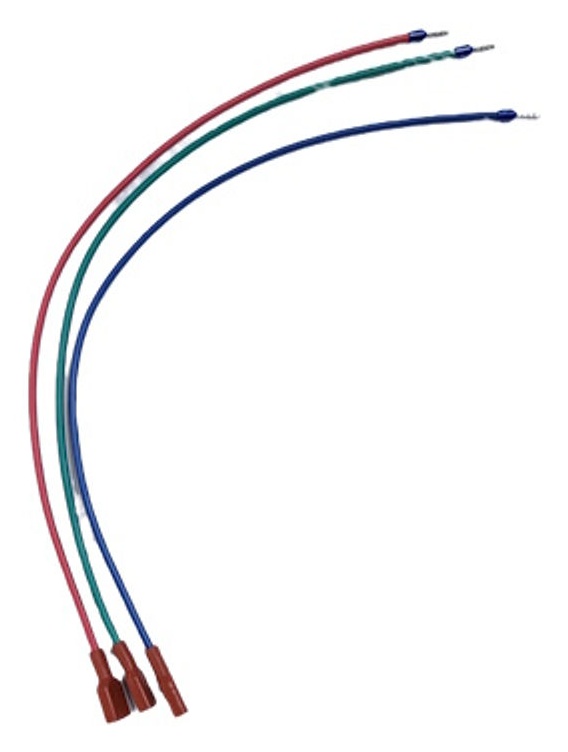

The specifications sheet linked on this page describes R60B leads as a set of three colored leads for the R60B-45/S2 when female spade terminals are preferred over the on-board screw terminals. The colors are green, blue, and red. Length is 12.00 inches. The note at the bottom says these leads were designed to be used with the R60B-45/S2.

Spade terminal details on the sheet are 18 gauge wire, insulation thickness of 0.03 inch, female gender, tab width 0.250 inch, tab thickness 0.032 inch, and tab length 0.305 inch. Termination is crimp. Wire gauge for the contact is 14 to 18 AWG. Contact material is brass with a tin finish. Insulation diameter is 0.120 to 0.170 inch. The pin terminal insulation is listed as PVC. This page identifies the product as a wire harness.
