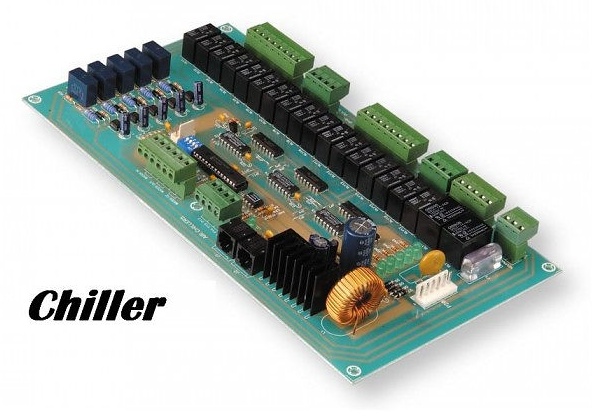

W100 product photo
Air Conditioning Control

W100

W100 Chiller Controller.

This page calls the product a W100 chiller controller. The manual linked from the page is a chiller control specification. It describes a microprocessor controller for control, protection, and self-diagnostics, with a control panel. It says the air conditioner can use hermetic or semi-hermetic compressors, and that the condensing unit can be up to 2 refrigerating circuits with 2 compressors per circuit.

The listed system is a main board, up to 2 control panels on a standard 6 meter cable, and 3 sensors: water out, water freeze 1, and water freeze 2, at a standard 7 meter length. The board and panel use a 4-core RS485 cable, up to 1000 m, and two connectors allow two panels. The sheet counts 3 analog inputs and 9 digital outputs, including pump, alarm, two fan motors, and compressor contactors C1A, C1B, C2A, and C2B.

See this board in the control system for HVAC and the factory steps in custom control solutions.
